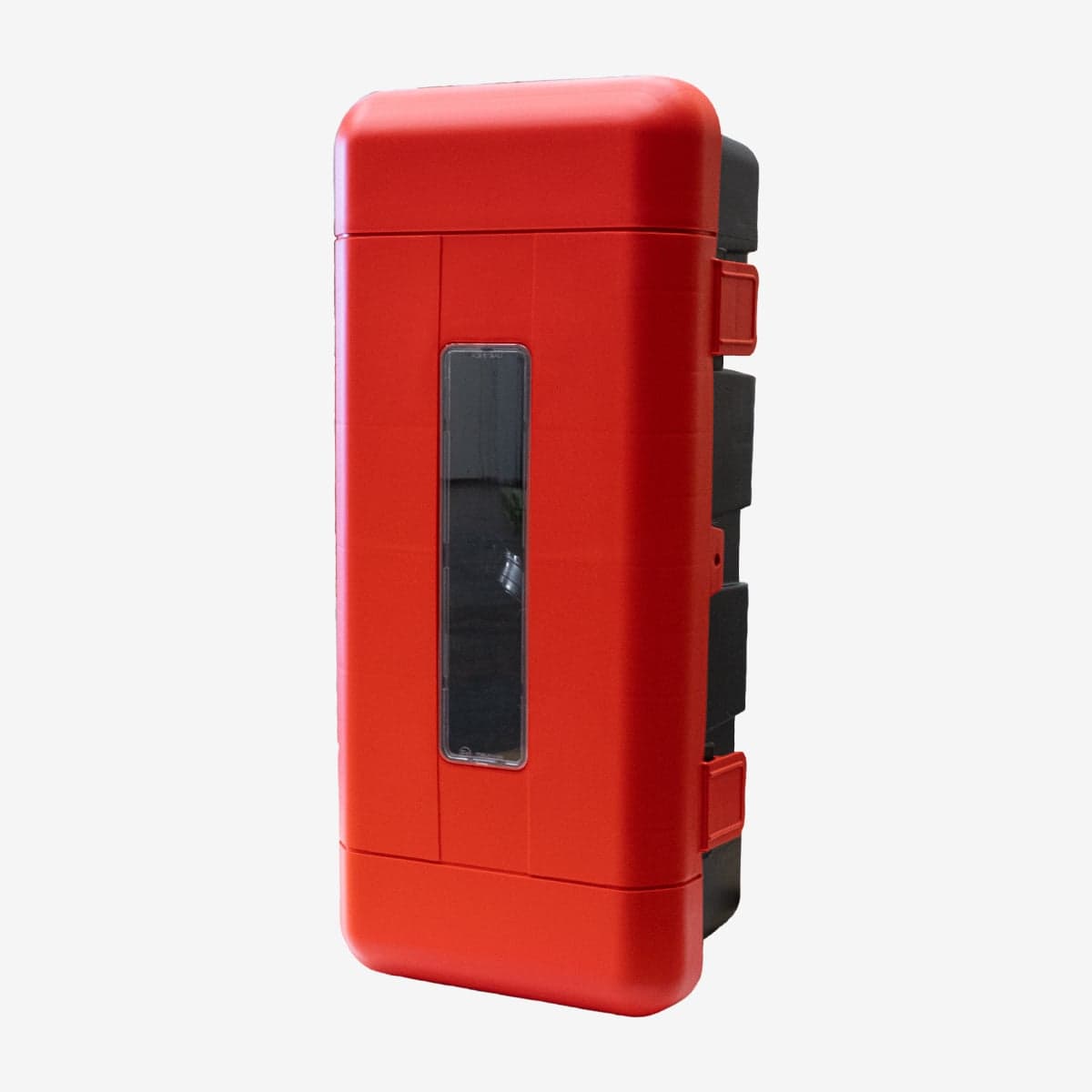

Fire extinguisher cabinet, 6 kg and 9 kg
Robust wall or vehicle cabinet sized for 6 kg and 9 kg portable extinguishers, with an integrated retention strap and a front viewing window, for corridors, plant rooms, trucks, and buses where the cylinder must stay secured but remain visible.
- Fits 6 kg and 9 kg portable extinguishers
- 715 x 335 x 240 mm cabinet
- Wall or vehicle mount with retention strap
- Front viewing window with quick-release cover
Product overview
Swedish-manufactured moulded polymer fire extinguisher cabinet sized for 6 kg and 9 kg portable cylinders, for corridors, plant rooms, loading bays, trucks, and buses where buyers need the extinguisher secured against movement but still visible through the front window. The cabinet measures 715 x 335 x 240 mm, mounts on a wall or vehicle bulkhead, and ships with an integrated retention strap that holds the cylinder in place during transit. The red front cover opens on side latches so the extinguisher can be removed quickly without tools. It is an accessory cabinet only: the portable extinguisher is quoted separately.
Typical applications and specification support
Corridors, plant rooms, and vehicle bulkheads where a 6 kg or 9 kg portable must stay secured but remain visible for inspection. Fleet buyers specify this cabinet on trucks and buses so the cylinder cannot roll in transit while still meeting the quick-access requirement at a roadside stop.
Cabinet construction and extinguisher fit
The housing is a moulded polymer cabinet with a metal backplate, red front cover, and black rear shell. The 715 x 335 x 240 mm internal space accepts standard 6 kg and 9 kg steel portables with hose and bracket fitted. An integrated retention strap secures the cylinder against movement; the front cover opens on side latches without tools.
What ships with each unit
One cabinet with front cover, rear housing, side latches, and integrated extinguisher retention strap. Mounting hardware and the portable extinguisher are quoted separately unless your purchase order lists a matched cylinder line.
Trade supply terms
Article NV-ACC-CAB-69 on EXW, FCA, or DAP. Not dangerous goods; standard freight. Send quantity and delivery country for carriage and batch documents.
FAQs
Specification, conformity, and delivery, answered by our sales team.
What is included with the NV-ACC-CAB-69 fire extinguisher cabinet?
Each unit ships as one cabinet with red front cover, black rear housing, side latches, and an integrated retention strap for the cylinder. Wall fixings and the portable extinguisher itself are not part of this article unless your quotation lists them on separate lines. Confirm mounting hardware on the purchase order if the site survey requires it.
Which portable extinguishers fit the 715 mm fire extinguisher cabinet?
The cabinet is sized for standard 6 kg and 9 kg steel portables with hose and bracket fitted, including the ABC powder and liquid lines in the NORDSKYDD catalogue at those charge weights. Smaller car portables and 12 kg workplace cylinders are outside the stated fit. Send the extinguisher article number on the enquiry and we confirm clearance before you order.
Can the fire extinguisher cabinet be mounted in trucks and buses?
Yes. The cabinet is specified for wall and vehicle bulkhead mounting, with the retention strap holding the cylinder during transit. Fix it where the driver or crew can reach the cover latches without leaving the cab, and pair it with an F01 location sign if the installation drawing requires visible marking beside the cabinet.
Is the fire extinguisher cabinet certified under EN 3-7?
No. This is mounting hardware for portable extinguishers, not an extinguisher itself. Order the EN 3-7 portable separately where your risk assessment requires a rated cylinder inside the cabinet.
What is the minimum order for NV-ACC-CAB-69 extinguisher cabinets?
There is no fixed minimum per article, but very small orders may carry a handling charge on the quotation. Cabinets are not dangerous goods and move on standard freight. Tell us the delivery country and quantity and we confirm carriage, lead time, and conformity documents.
Request pricing and project support
Share the quantity, delivery country, and any site or project notes. We reply with line-item pricing, confirmed lead time, and the conformity documents for this article.
